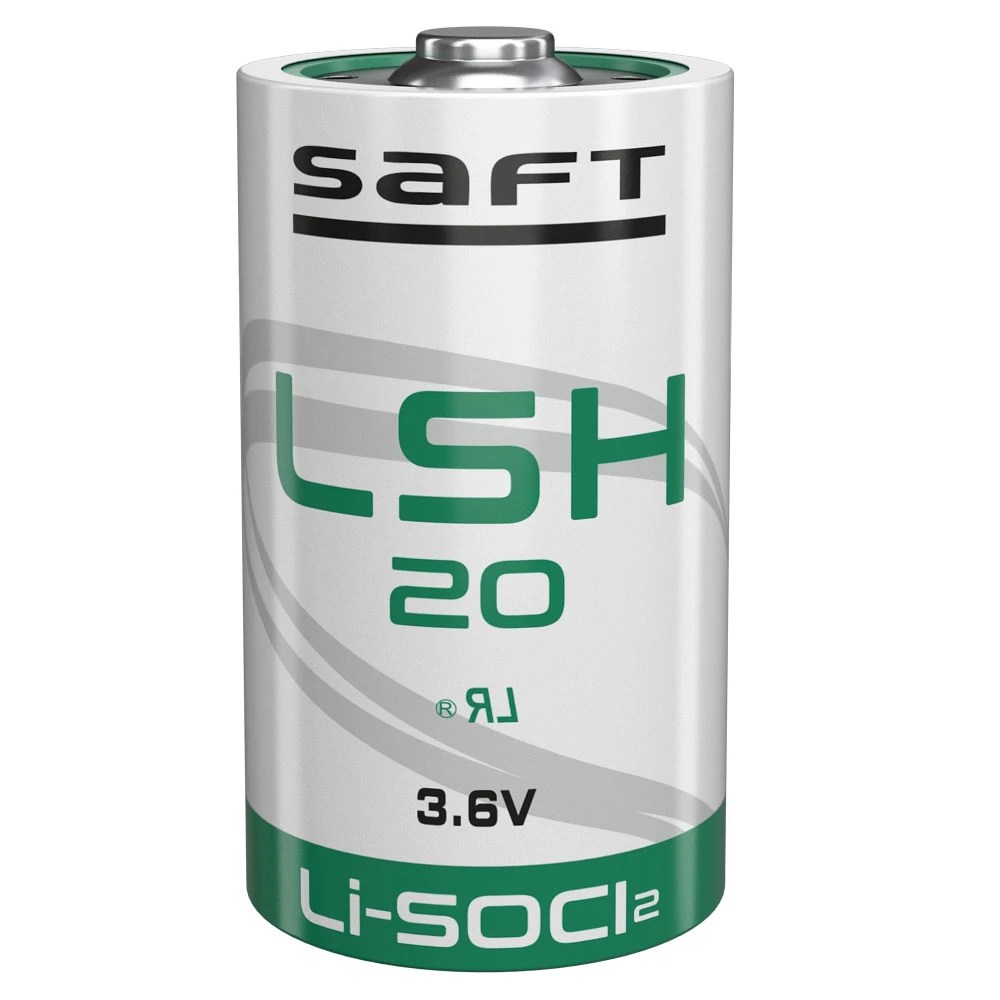

LSH 20
Primary Li-SOCI2 cell
High power density 3.6 V D-size spiral cell
Saft’s LSH 20 cell is ideally suited for longterm applications (typically from 5 to 20+ years), featuring high drain / high pulses currents.
Benefits
• High power / high energy densities (65 W/kg and 468 Wh/kg)
• High voltage response, stable during most of the lifetime of the application
• Wide operating temperature range (- 60°C / + 85°C)
• Low self-discharge rate, compatible with long operating life (less than 3% per year of storage, at + 20°C, after 1 year)
• Superior resistance to corrosion
• Low magnetic signature
Key features
• Spiral construction
• Built-in safety vent
• Finishing top with 5 A fuse
• Hermetic construction with glass-tometal seal
• Stainless steel can
• Non-flammable electrolyte
• RoHS and REACH compliance
• Made in France
Designed to meet all major quality, safety and environment standards
• Safety: UL 1642, IEC 60086-4
• Transport: UN 3090 and UN 3091
• Quality: ISO 9001, Saft Excellence System, continuous program
• CE: P/N: 03577R
Typical applications
• Utility Metering
• Tracking systems
• Dataloggers
• Alarms and security
• Wireless sensors
• Military radios
